Paint Pumps

Specifications

PD40

PD40L

PD40S

PD40SW

PD160

Model

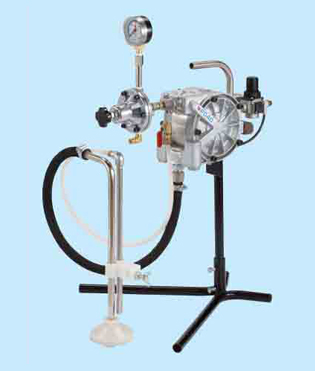

PD40

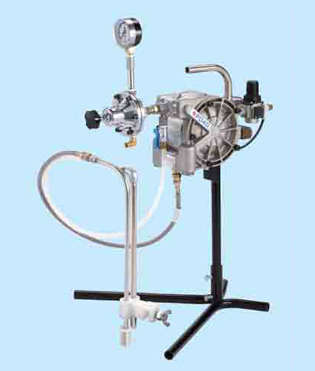

PD40L( Fine flushing type)

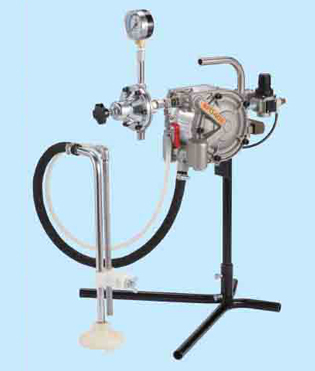

PD40S
( Stainless type)

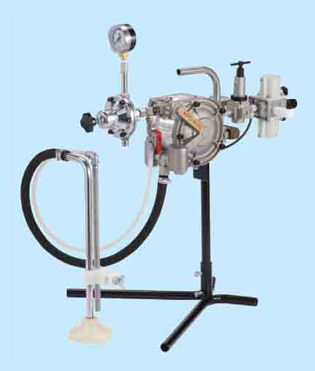

PD40SW
(Stainless, enlarged
pressure type)

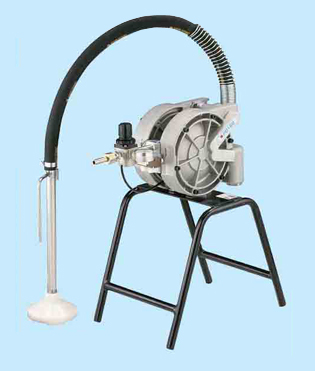

PD160

Pressure Ratio

1:1 1:2 1:1

Max paint flow rate *1

20L/min 10L/min 20L/min 15L/min 60L/min

Max Air Pressure

0.7MPa 1.0MPa 0.7MPa

Max Paint Pressure

0.7MPa( Pump Outlet) 1.0MPa 0.7MPa

Max fluid temperature

60°C

Air inlet bore

G1/4 (PF1/4)

G1/2 (PF1/2)

Paint outlet bore

Rc3/8 (PT3/8)

G3/8 (PF3/8)

Rc3/4 (PT3/4)
( Low pressure regulator outlet bore G1/4 ( PF1/4 ) (Low pressure regulator outlet bore G3/8 (PF3/8) -

Dimensions (WXDXH)

470X540X690 (mm)

470X650X690 (mm) 340X530X620 (mm)

Weight

8.5kg 13.5kg 15.0kg 16.0kg

*1 Fluid : Water, Pump
